Tianfon Solar Energy Battery Storage series offers unique and cost-effective on-grid, hybrid, and off-grid commercial/industrial power supply solutions. These install-ready systems come with various battery, PV system, and inverter configurations, available in 400V or 480V 3-phase. Featuring Lithium Iron Phosphate (LiFePO4) battery packs with 6000 cycles and up to 90% Depth of Discharge, the systems are scalable from 50kW to 2000kW. Applications include backup power, peak shaving, and renewable integration, ensuring a hassle-free service life of 10+ years.
Product Detail
Tianfon Solar Energy Battery Storage series has been created to be a unique and cost effective on-grid, hybrid, off-grid commercial/industrial power supply. These systems are designed to be install ready with a variety of different battery, PV system, and inverter configurations. All systems are either 400V or 480V 3 phase.

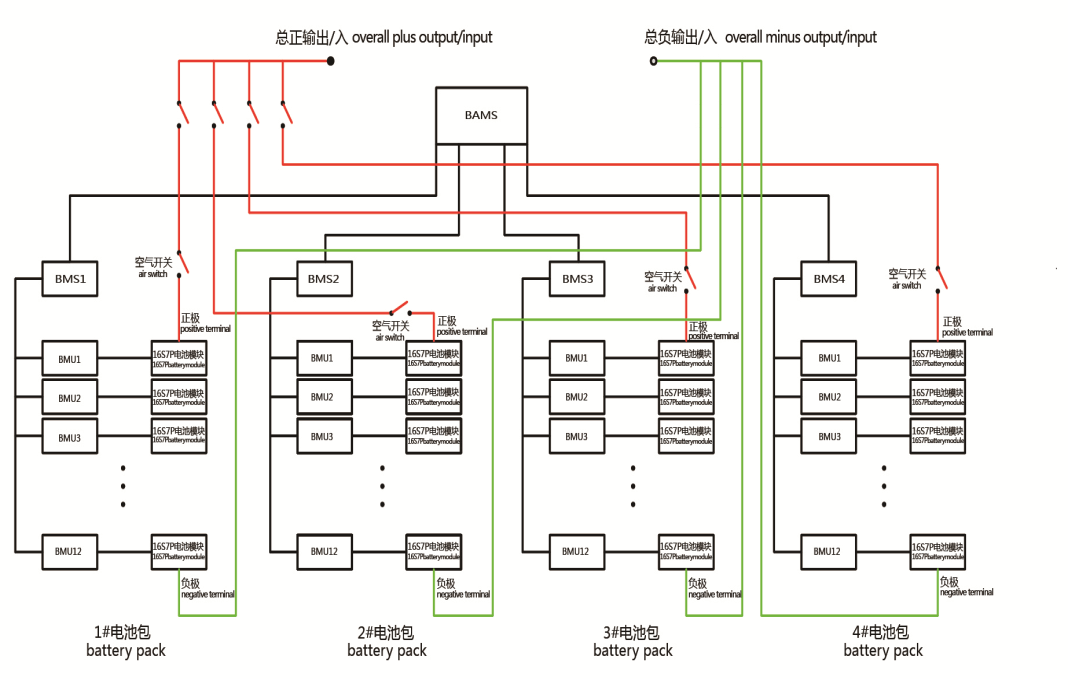

Our commercialand industrial hybrid solar storage systems include Lithium Iron Phosphate (LiFePO4) battery packs connected in high voltage DC configurations. The
batteries offer 6000 cycles and up to 90% DOD (Depth of Discharge). Each battery is offered in 5.12kWh blocks that can be stacked in different storage footprints
depending on the clients needs.

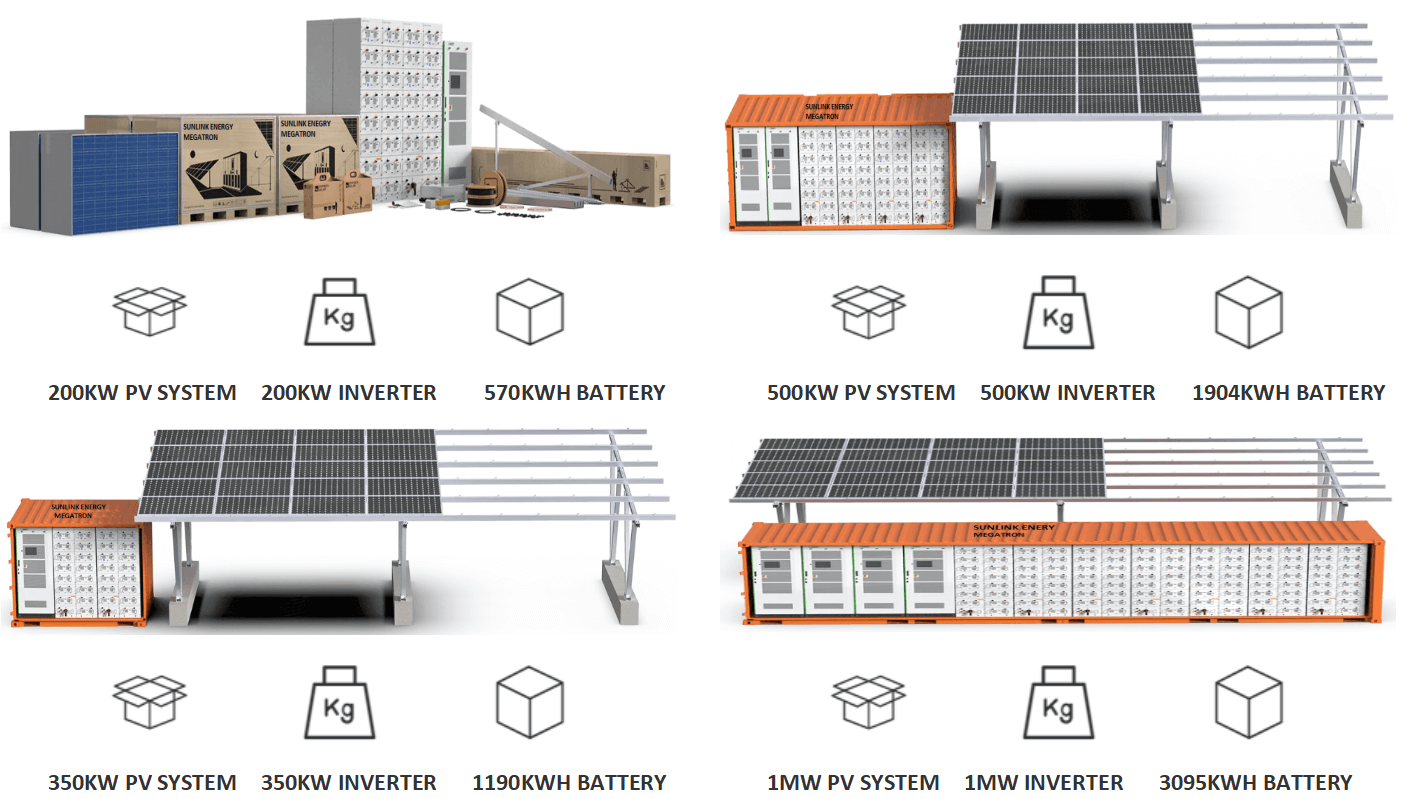

Scalable from 50kW to 2000kW in 3 phase configurations, these hybrid systems offer commercial & industrial customers turn key commercial scale energy storage solutions that are designed for 10+ years of hassle free energy generation and usage.
Applications of the Tianfon include backup power, peak shaving, time of use bill management, frequency regulation, voltage support, renewable integration, and islanding.
TianfonS Solar and Battery Energy Storage Solutions are a new COMMERCIAL renewable energy kit developed.

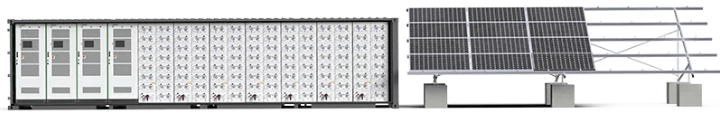

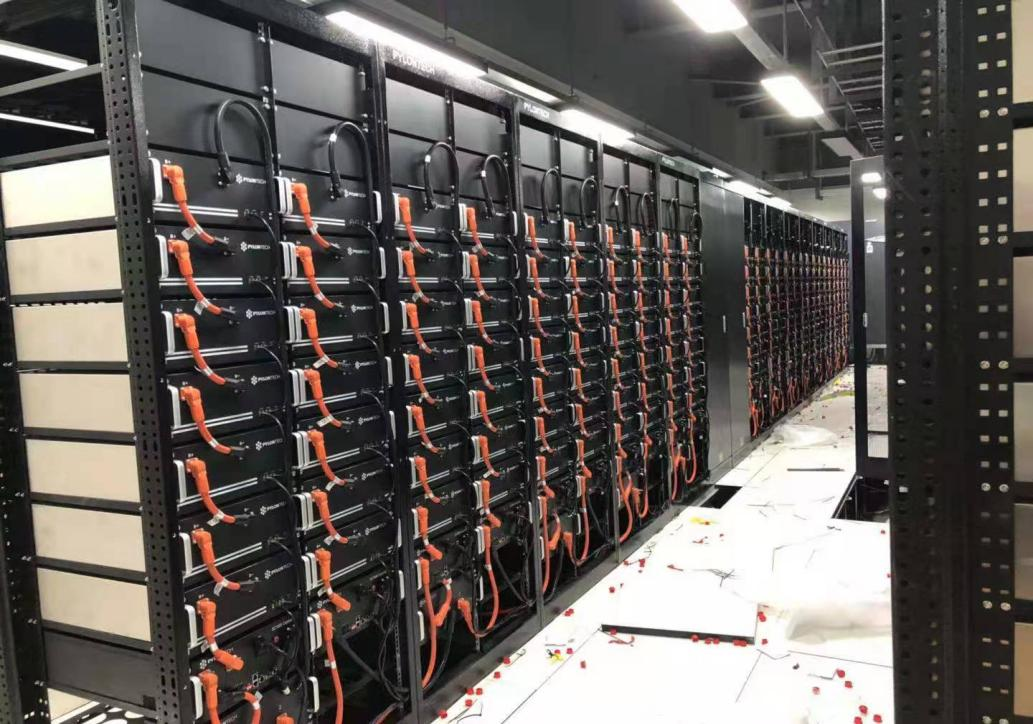

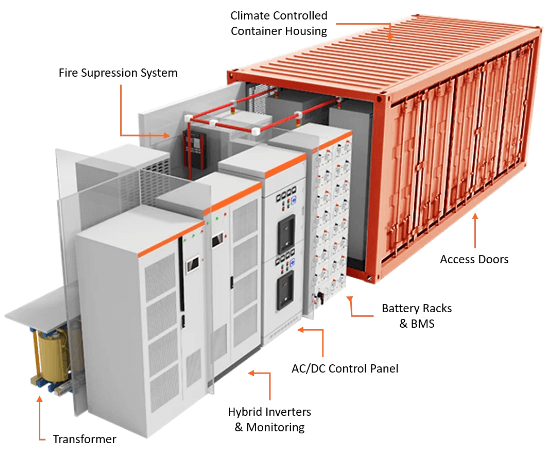

BESS systems are offered as either an indoor rack installation or with a climate controlled container design. Each complete system offers users a hassle free 10+ year service life and hold internationally compliant certifications.
Common PV/Battery Applications
Micro gridsFactories that need consistent powerShopping and Distribution CentersOffices BuildingsSchools and LibrariesIsland communities
Battery Storage Benefits
Demand Charge ReductionPeak Load ShiftingFull Back Up PowerSmall Footprint to Power Ratio. Fast response.
Take comfort in your investment with Tianfon Energy’s solar hybrid energy storage battery systems. With industry advancing proprietary software that looks after your BESS the BMS (battery management system) system optimizes the efficiency of the entire unit down to the individual cells in each battery pack.

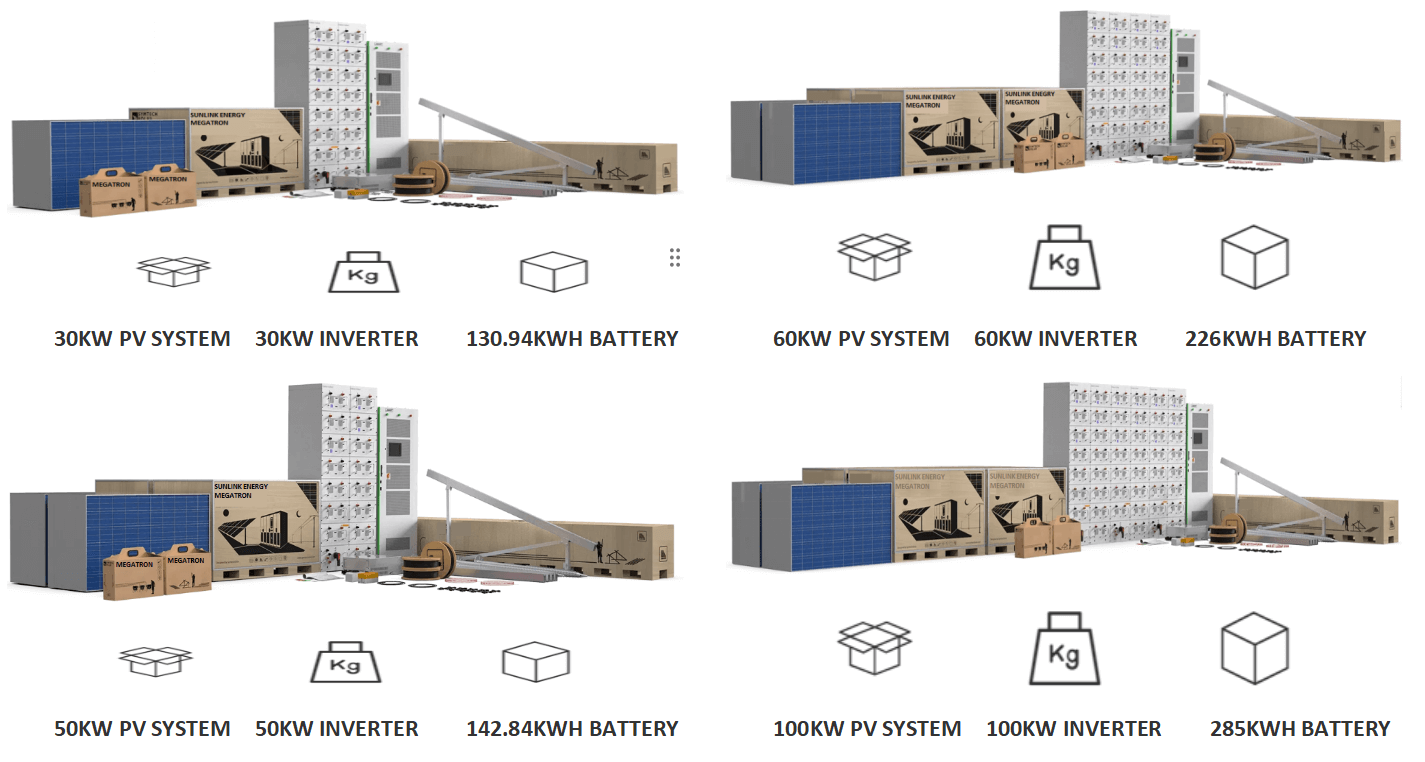

• Solar modules
• Hybrid inverter/charger

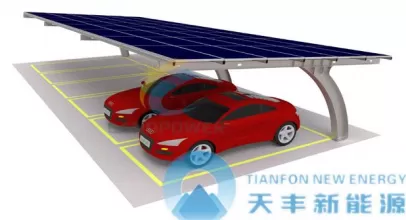

• Custom mounting system (ground, carport or roof)
• Battery bank
• Battery BMS and EMS
• PV, battery bank, & grounding wiring harnesses
• DC and AC disconnects
• Wire management kit
• Combiner box
• Grounding hardware
• Safety label kit
Efficiency, safety and durability in energy storage. Tianfon PV hybrid systems are the solar energy storage platforms of the future.
