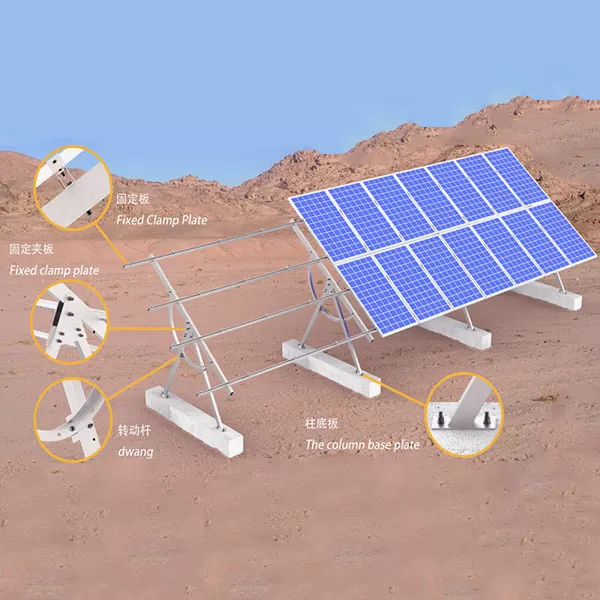

Tianfon fixed adjustable solar mounting system is an optimized version of the traditional fixed adjustable bracket, offering similar costs but significantly enhanced power generation. This product is more stable and reliable compared to tracking brackets. Ideal for large-scale photovoltaic power stations.
The fixed adjustable mounting system is designed to suit both concrete and ground screw foundations. All components are precisely engineered for a high fit, ensuring easy and convenient installation.
Product Detail
Product Parameter:
Type | Ground solar mounting |
Color | Natural or Customized |
Treatment | Anodized, Galvanized |
Structural materials | Aluminum Alloy,Hot-Galvanized Steel, Stainless Steel |
Install Angle | 0-60 degree |
Ground Clearance | ≥0.15m |
Max Building Height | 20 m |
Wind load | 130mph(60m/s) |
Snow Load | 30psf(1.4kN/m2) |
Applicable Module | Framed, frame-less |
Module Orientation | Portrait, landscape |
Array Layout | According to the actual situation |
Warranty | 10 years |
Duration | More than 25 years |
Product Feature | Suitable for all kind of modules; Unique connection design,convenient and quick installation; High strength,universal and good adaptation to the geological conditions. |
Our Factory
Certificates
