The Solar Surface Water Pump is an innovative and sustainable solution designed to harness solar energy for efficient water pumping. This system utilizes photovoltaic panels to convert sunlight into electricity, powering the pump and enabling the extraction of water from surface sources such as ponds, lakes, rivers, or reservoirs.
Technical Information
3 inch DC Solar Deep Well Pump Technical Data
| No. | Model | Max Flow(m2/h) | Max head(m) | Pump | Pump Dia (inch) | Outlet Dia(inch) | Solar Panels | ||
| Voltage(v) | Power(W) | VOC range(inch) | Power(W) | ||||||
| 1 | 3TFD4-34-24-300 | 4 | 34 | DC24 | 300 | 3 | 1.25 | 25-50V | 450 |
| 2 | 3TFD4-51-48-400 | 4 | 51 | DC48 | 400 | 3 | 1.25 | 50-100V | 600 |
| 3 | 3TFD4-82-48-600 | 4 | 82 | DC48 | 600 | 3 | 1.25 | 50-100V | 900 |
| 4 | 3TFD4.8-95-72-750 | 4.8 | 95 | DC72 | 750 | 3 | 1.25 | 75-150V | 1125 |
| 5 | 3TFD4.8-114-72-1100 | 4.8 | 114 | DC72 | 1100 | 3 | 1.25 | 75-150V | 1650 |
| 6 | 3TFD4.8-114-110-1100 | 4.8 | 114 | DC110 | 1100 | 3 | 1.25 | 100-200V | 1650 |
| 7 | 3TFD4.8-136-110-1500 | 4.8 | 136 | DC110 | 1500 | 3 | 1.25 | 100-200V | 2250 |
Components
Solar Panels: High-efficiency photovoltaic panels are employed to capture sunlight and convert it into electrical energy.
Pump Mechanism: The system incorporates a high-performance water pump designed for optimal efficiency, durability, and reliability.
Controller: An intelligent controller manages the operation of the pump, optimizing energy usage and ensuring consistent water flow.
Storage System (Optional): In some configurations, a storage system like batteries may be integrated to store excess energy for use during low sunlight periods.
Performance
Flow Rate: The Solar Surface Water Pump delivers a reliable and adjustable flow rate, catering to various agricultural, irrigation, or water supply needs.
Head Lift: It is capable of lifting water to significant heights, making it versatile for both flat and elevated terrains.
Weather Resistance: Designed to withstand diverse weather conditions, ensuring consistent performance even in challenging environments.
Low Maintenance: With fewer moving parts and a simple design, the solar pump requires minimal maintenance, reducing operational costs.
Advantages
Sustainability: Harnessing solar energy makes the system environmentally friendly, reducing dependence on conventional energy sources.
Cost-Efficiency: The elimination of fuel or electricity costs makes solar surface water pumps a cost-effective solution in the long run.
Remote Accessibility: Suitable for remote areas with limited access to the electrical grid, providing a reliable water source for agriculture or community use.
Easy Installation: The modular and straightforward design allows for easy installation, reducing setup time and cost

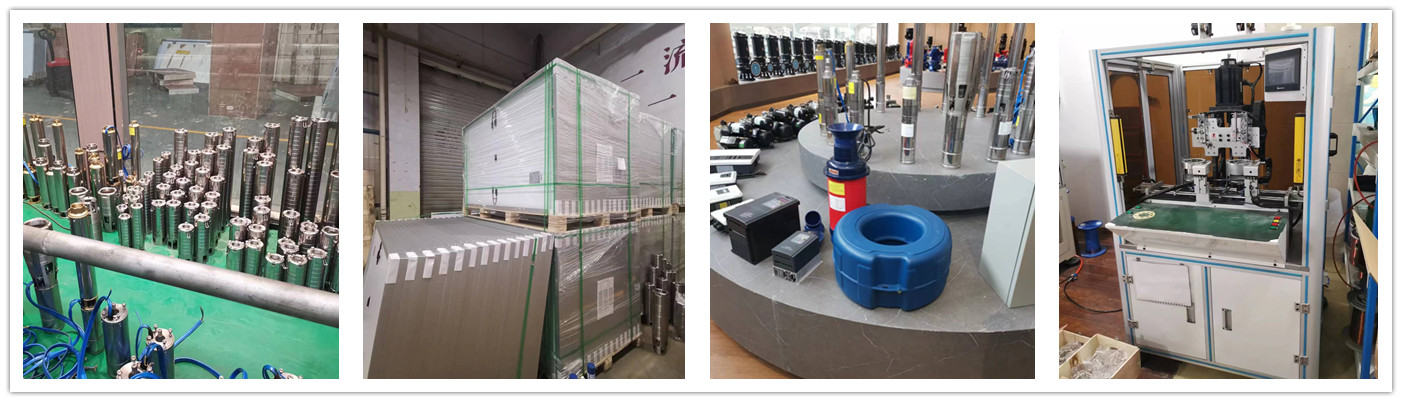

Factory & Packing
