Solar Powered Water Supply is a comprehensive and sustainable solution designed to harness solar energy for meeting water supply needs. This system integrates solar panels, water pumps, and intelligent control systems to extract, store, and distribute water efficiently. It provides a reliable and eco-friendly alternative to conventional water supply methods.
Technical Information
3 inch DC Solar Deep Well Pump Technical Data
| No. | Model | Max Flow(m²/h) | Max head(m) | Pump | Pump Dia (inch) | Outlet Dia(inch) | Solar Panels | ||
| Voltage(v) | Power(W) | VOC range(inch) | Power(W) | ||||||
| 1 | 3TFD4-34-24-300 | 4 | 34 | DC24 | 300 | 3 | 1.25 | 25-50V | 450 |
| 2 | 3TFD4-51-48-400 | 4 | 51 | DC48 | 400 | 3 | 1.25 | 50-100V | 600 |
| 3 | 3TFD4-82-48-600 | 4 | 82 | DC48 | 600 | 3 | 1.25 | 50-100V | 900 |
| 4 | 3TFD4.8-95-72-750 | 4.8 | 95 | DC72 | 750 | 3 | 1.25 | 75-150V | 1125 |
| 5 | 3TFD4.8-114-72-1100 | 4.8 | 114 | DC72 | 1100 | 3 | 1.25 | 75-150V | 1650 |
| 6 | 3TFD4.8-114-110-1100 | 4.8 | 114 | DC110 | 1100 | 3 | 1.25 | 100-200V | 1650 |
| 7 | 3TFD4.8-136-110-1500 | 4.8 | 136 | DC110 | 1500 | 3 | 1.25 | 100-200V | 2250 |

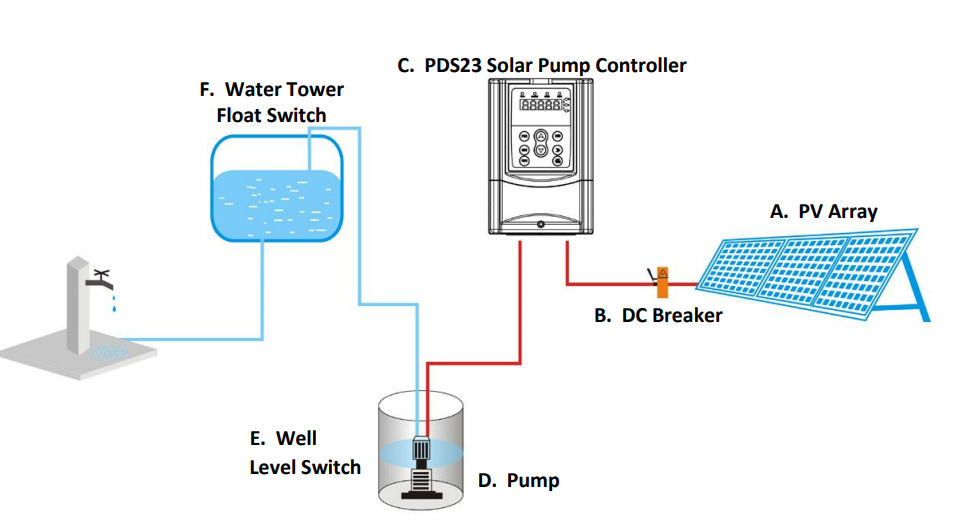

Solar Panels: High-efficiency solar panels are employed to capture sunlight and convert it into electrical energy.

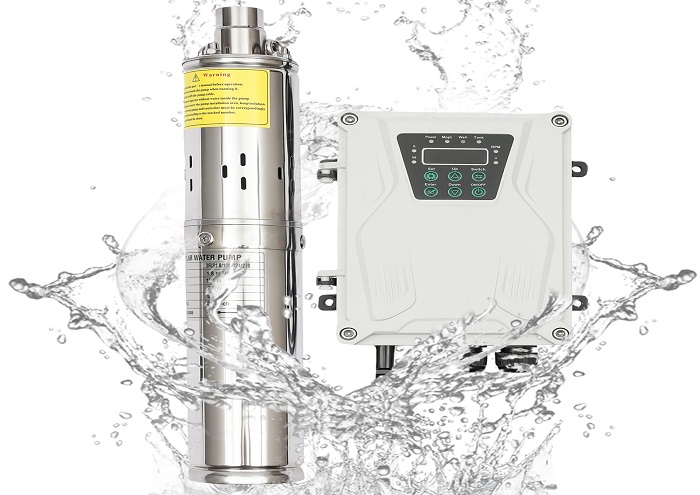

Water Pump System: Utilizes either surface water pumps or submersible well pumps, depending on the water source and requirements.
Storage System: May include a storage component such as batteries to store excess energy for use during low sunlight periods.

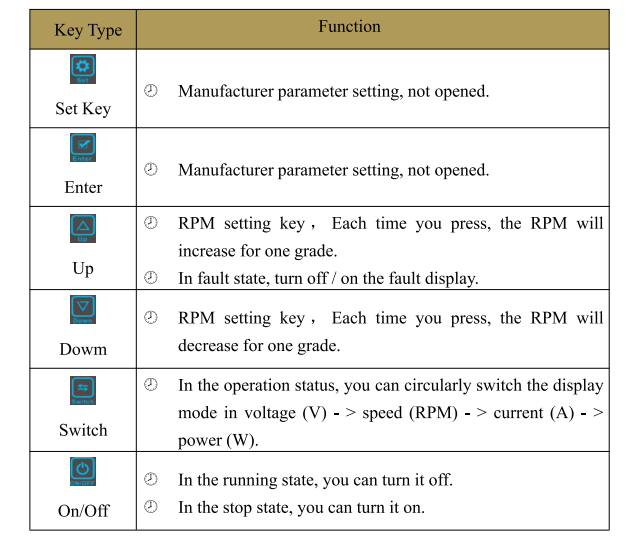

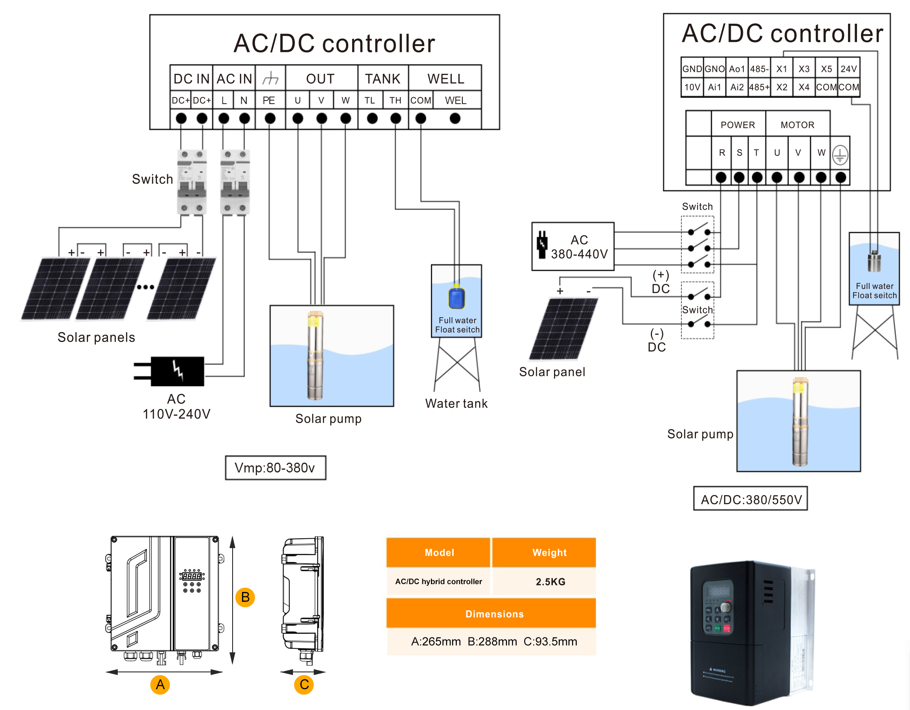

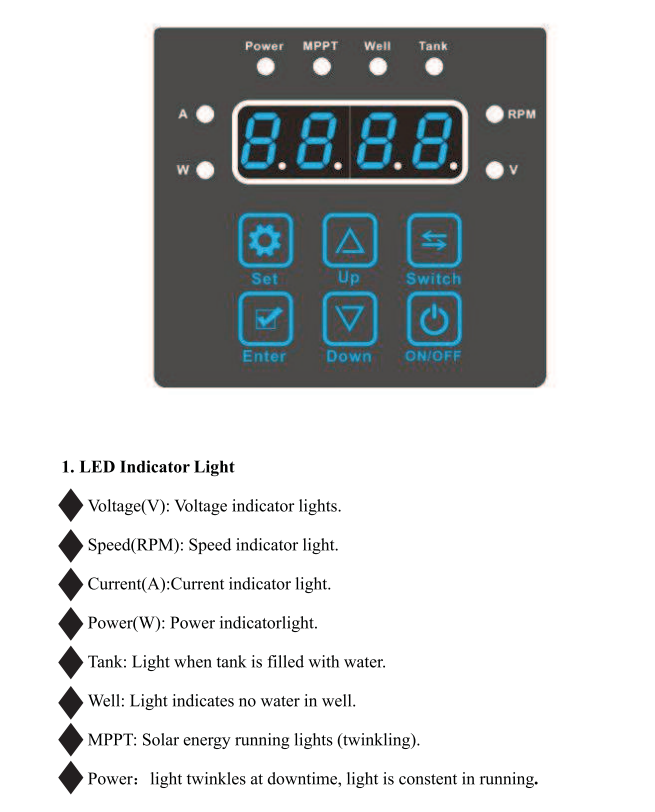

Controllers: Intelligent controllers optimize the performance of the water pump and regulate energy flow to ensure efficient operation.
Operation:
Performance:
Flow Rate: The system delivers a consistent and adjustable flow rate, catering to various water supply needs in agriculture, residential areas, or community projects.
Energy Efficiency: Solar Powered Water Supply systems are designed for high energy efficiency, ensuring optimal water extraction and distribution with minimal energy consumption.
Reliability: With intelligent control systems and durable components, these systems offer reliable and continuous water supply.
Adaptability: Can be customized to suit different geographical locations, water sources, and user requirements.
Advantages:
Renewable Energy: Harnessing solar power makes the water supply system environmentally friendly, reducing dependence on non-renewable energy sources.
Cost-Efficiency: Eliminates or significantly reduces electricity or fuel costs, leading to long-term savings.
Independence: Provides an independent and sustainable water supply solution, especially in off-grid or remote areas.
Low Maintenance: The use of durable components and efficient design results in lower maintenance requirements.
Scalability: Can be scaled up or down to meet the water supply needs of individual households, communities, or larger agricultural areas.
Applications:
Agriculture: Ideal for irrigation in agricultural fields, promoting sustainable and cost-effective farming practices.
Residential Water Supply: Provides an independent water source for homes, reducing reliance on centralized water systems.
Community Water Projects: Supports water supply initiatives in communities without access to conventional power sources.
Emergency Response: Suitable for providing immediate water supply during emergencies or natural disasters.
