The Solar Submersible Well Pump is an advanced and eco-friendly water pumping solution designed for extracting water from wells using solar energy. This pump is submersible, meaning it is installed below the water level, providing a reliable and efficient means of accessing groundwater for various applications.
Technical Information
Solar Panels: High-efficiency solar panels are employed to capture sunlight and convert it into electricity, providing the power needed for the submersible pump.Submersible Pump: The pump is designed to be submerged in the well, allowing for efficient water extraction without the need for additional priming.Controller: An intelligent controller manages the solar energy input, optimizing pump performance and protecting the system from overloading or underutilization.Materials: Built with corrosion-resistant materials, the pump is durable and suitable for prolonged submersion in water.
3 inch stainless steel solar screw pump data
| No. | Model | Max Flow(m2/h) | Max head(m) | Pump | Pump Dia (inch) | Outlet Dia(inch) | Solar Panels | ||
| Voltage(v) | Power(W) | VOC range(inch) | Power(W) | ||||||
| 1 | 3TFS4-34-24-300 | 4 | 34 | DC24 | 300 | 3 | 1.25 | 25-50 | ≥390 |
| 2 | 3TFS4-51-48-400 | 4 | 51 | DC48 | 400 | 3 | 1.25 | 50-100 | ≥520 |
| 3 | 3TFS4-82-48-600 | 4 | 82 | DC48 | 600 | 3 | 1.25 | 50-100 | ≥780 |
| 4 | 3TFS4.8-95-72-750 | 4.8 | 95 | DC72 | 750 | 3 | 1.25 | 75-150 | ≥975 |
| 5 | 3TFS4.8-114-72-1100 | 4.8 | 114 | DC72 | 1100 | 3 | 1.25 | 75-150 | ≥1430 |
| 6 | 3TFS4.8-114-110-1100 | 4.8 | 114 | DC110 | 1100 | 3 | 1.25 | 100-200 | ≥1430 |
| 7 | 3TFS4.8-136-110-1500 | 4.8 | 136 | DC110 | 1500 | 3 | 1.25 | 100-200 | ≥1950 |
Performance:
Depth Range: The Solar Submersible Well Pump is capable of reaching significant well depths, providing access to water in both shallow and deep wells.
Flow Rate: It delivers a consistent and adjustable flow rate, catering to various water supply needs such as agriculture, residential use, or livestock watering.
Energy Efficiency: The pump is designed for high energy efficiency, ensuring optimal water extraction with minimal energy consumption.
Reliability: With a simple design and fewer moving parts, the submersible well pump offers reliable and low-maintenance operation.
Advantages:
Renewable Energy: By utilizing solar power, the pump reduces reliance on traditional energy sources, making it an environmentally friendly solution.
Cost Savings: Eliminates the need for electricity or fuel, leading to long-term cost savings for the user.
Low Maintenance: The submersible design reduces wear and tear, resulting in lower maintenance requirements.
Continuous Operation: Can operate continuously as long as sunlight is available, ensuring a constant water supply.
Versatility: Suitable for various well sizes and depths, making it adaptable to different geographical and user requirements.
Applications:
Agriculture: Ideal for irrigation in remote agricultural areas where access to the electrical grid may be limited.
Residential Water Supply: Provides a sustainable and independent water source for homes in off-grid locations.
Livestock Watering: Ensures a reliable water supply for livestock in rural or remote areas.
Community Projects: Supports water supply initiatives in communities without access to conventional power sources.

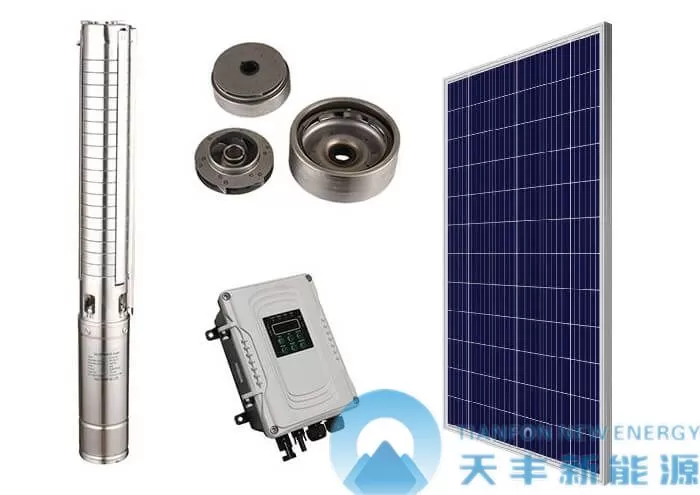

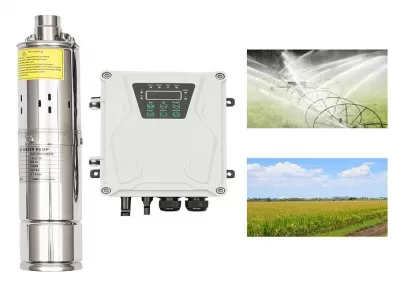

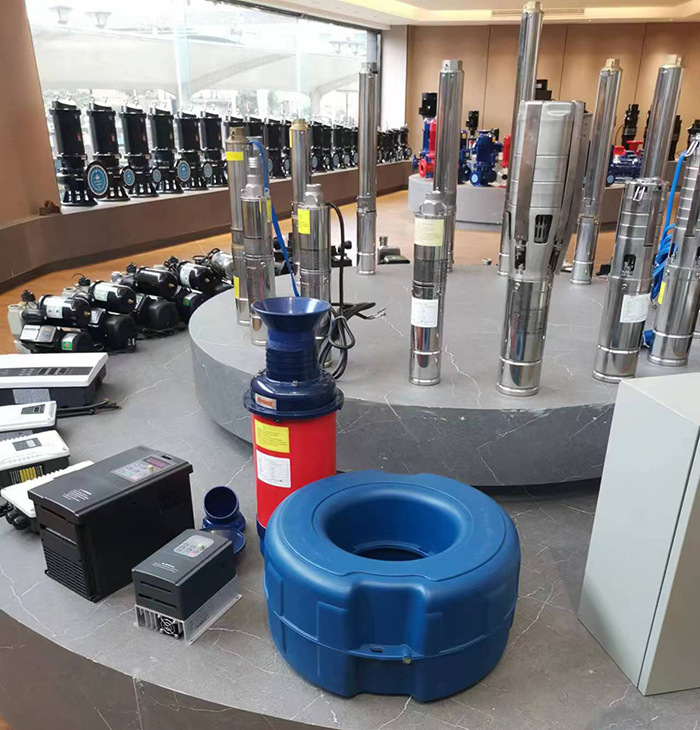

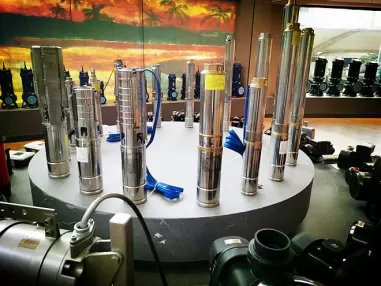

Product Show:
Company Introduction:
As a member of Tianfon Green Assembly Group,Henan Tianfon New Energy Tech. Co., Ltd mainly engaged in photovoltaic systems, photovoltaic water pumps, photovoltaic oxygen generators, and other photovoltaic series products. Tianfon is one of subsidiary companies under Tianfon Green Assembly Group; we have a high quality and efficient management team which focus on market, R&D, design, production, installation and engineering management for various types of solar systems.
